DMX512 RGB LED Controller

Model Number:GNH-Controller-DMX-D

Input Voltage: 12-24VDC

Output Signal: DMX512

Output Loop: 1 Port

1. Structure Drawing

SETUP: Short press to adjust movement direction of effect; Long press to enter the menu setting interface.

FUN: Short press to switch mode type;

Long press to enter the DMX addressing, meanwhile start learning ID process of RF remote.

2.Controller

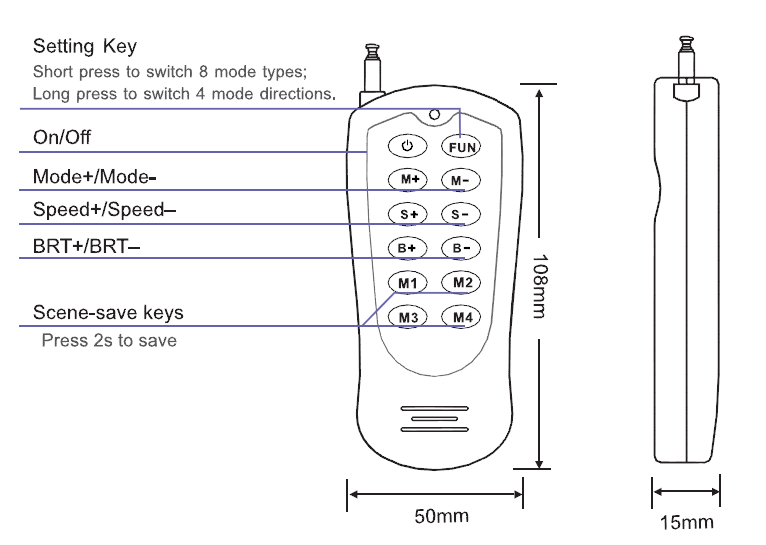

Buzzer on/off: Long press “On/Off” button on the remote.

ID Learning Method:

Long press button on the controller for 2 seconds, there is a buzzer beep, keep pressing:

Learning ID: Press any key on the remote in 3 seconds.

Cancelling ID: Press any key on the remote over 3 seconds.
