20W DC12-24V IP68 Underwater LED Fish Attracting Light Night LED Boat Dock Lighting 130lm/w

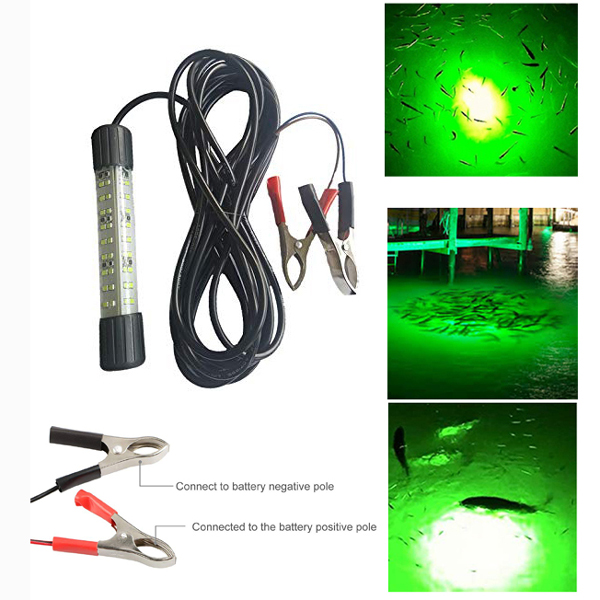

1: 12-24VDC Battery Powered with 5Meters(10 Foot) Long Underwater Power Cord

2: 20 watts,2600 lumens brightness, ultra-low battery consumption (runs 8 X Longer than halogen)

3:5Meters Cable attached

4: 1 fish using photo taxis attract fish special fishing, aquaculture, fishing lamps.

5: Available power is in 20W

6. Wide beam angle of 360 degrees, down directly into the water, maximize the use of light.

7. Waterproof IP68, not afraid of rain, salt corrosion.

8. Suitable for sea fishing night fishing lure fish.

9. Over voltage, short circuit, temperature, open circuit protection

10. Available in white, green light

Download Collection Catalogue Inquire

Specification
Packing detail:
Application
Inquire

Introduction for Greenough LED Boat Fish light Fish Attractor Light Underwater Fish Light

The led underwater fish attractor has high fish lamp lights, the light efficiency of more than 3000 w, 1700 w high pressure sodium lamp set fish lamp brightness, light emitting Angle is 360 degrees, all loss of the light source is small, light energy fall into water, and enhance collection of fish. Without external rectifier, lamps and lanterns are with capacitive circuit.

More matching with the alternator perceptual circuits. Lamps and lanterns is waterproof processing. Lamp bead imported brand 3030SMD , long service life 50000 hours. Manufacturer’s warranty 1 years, product life-long maintenance.

Light source: 3030 lights, 1 W, chips.

The glue for waterproof is imported from Japan, photosynthetic efficiency can be over 150-160 lm/W, power factor > 99%, the efficiency of > 98%.

Constant power output, small loss, high efficiency and energy saving

A variety of circuit protection, extend the life of the ballast

Adaptive output control, high reliability.

Make full use of the generator unit capacity, improve the overall efficiency

220V; A temperature-controlled protector Long time lighting, ballast low temperature

The built-in ballast, more convenient to carry, and increase the space of the ship

Note: the quality assurance for one years, diameter size: 150 mm, the lamp body material: aluminum gold + acrylic glass

Power factor: 0.99, light Angle: 360, light colors: green, can replace traditional set fish lamp power 1300 w

LED Underwater Fish light uses green light to structure above water or underwater to attract fishes.

Greenough Fishing Lights manufactures high quality, energy efficient, water proof lights for both “above water” and “underwater” applications.

Greenough Fishing Lights adopts high output LEDs for great fish attracting capability.

The fish attracting capability of our high output LED dock lights will enhance fishing, and just watching fish, right off your dock for the entire family.

Factors such as water depth, clarity, boat traffic, and the desired appearance of the illuminated area should be considered

When choosing the best suited dock light. If possible, it's always better to use (2) green fish lights compared to (1) green fish light in most

Circumstances. Using two lights spread 3' to 4' apart will give you a much wider radius of light

and will allow more fisherman to fish in different zones of the light. However, if you have a smaller boat, one underwater fish light will provide sufficient light.

Technique detail for 20W Underwater LED Fish attractor light Night LED Boat Dock Lights # GNH-AF-20W-12-24V:

Item No.:	GNH-AF-20W-12-24V
Wattage (W):	20W
Voltage(V)	DC12-24V
Color:	Green/White
Beam Angle:	360°
Size:	Φ28*160mm
IP Rating	IP68
Body Material	PC
Length of cables	5M
